プログラミング、3DCGとその他いろいろについて
[PR]上記の広告は3ヶ月以上新規記事投稿のないブログに表示されています。新しい記事を書く事で広告が消えます。

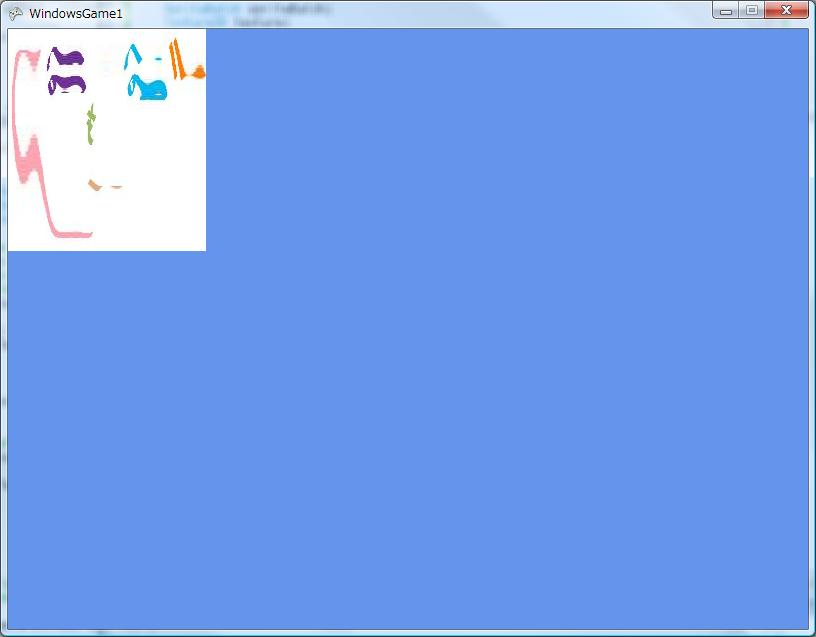

using Microsoft.Xna.Framework;
using Microsoft.Xna.Framework.Graphics;
public class MyGame : Game
{
GraphicsDeviceManager graphics;
SpriteBatch spriteBatch;
Texture2D texture;
Effect effect;
public MyGame()
{
graphics = new GraphicsDeviceManager(this);
Content.RootDirectory = "Content";
}
protected override void LoadContent()
{
texture = Content.Load
sampler TextureSampler : register(s0);
float4 PixelShaderFunction(float2 textureCoordinate : TEXCOORD) : COLOR0
{
float2 texOffset = {sin(textureCoordinate.x * 30) / 20 , 0};
return tex2D(
TextureSampler,
textureCoordinate + texOffset
);
}
technique Technique1
{
pass Pass1
{
PixelShader = compile ps_2_0 PixelShaderFunction();
}
}
[0回]

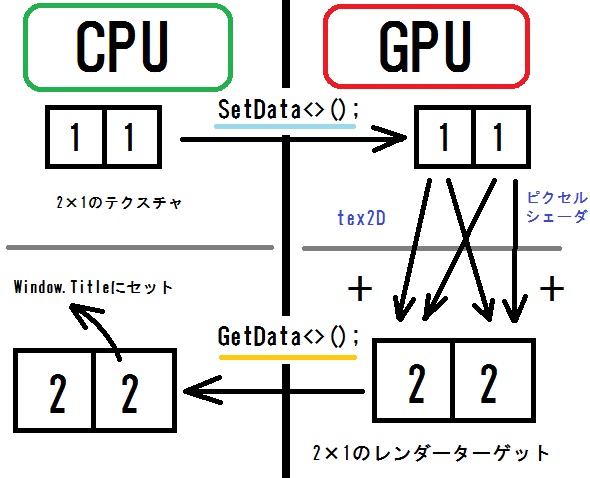

using Microsoft.Xna.Framework;
using Microsoft.Xna.Framework.Graphics;
public class MyGame : Game
{
GraphicsDeviceManager graphics;
Texture2D inputTexture;
RenderTarget2D result;
Effect additionCalculator;
VertexDeclaration vertexDeclaration;
//GPUから計算結果を受け取るバッファ
float[] resultBuffer = new float[2];
VertexPositionTexture[] vertices = {
new VertexPositionTexture(new Vector3(-1, 1, 0), new Vector2()),
new VertexPositionTexture(new Vector3(1, 1, 0), new Vector2(1, 0)),
new VertexPositionTexture(new Vector3(-1, -1, 0), new Vector2(0, 1)),
new VertexPositionTexture(new Vector3(1, 1, 0), new Vector2(1, 0)),
new VertexPositionTexture(new Vector3(1, -1, 0), new Vector2(1, 1)),
new VertexPositionTexture(new Vector3(-1, -1, 0), new Vector2(0, 1))
};
public MyGame()
{
graphics = new GraphicsDeviceManager(this);
Content.RootDirectory = "Content";
}
protected override void LoadContent()
{
inputTexture = new Texture2D(GraphicsDevice, 2, 1, 0, TextureUsage.None, SurfaceFormat.Single);
inputTexture.SetData<float>(new float[] { 1, 1 });
result = new RenderTarget2D(GraphicsDevice, 2, 1, 0, SurfaceFormat.Single);
additionCalculator = Content.Load<Effect>("AdditionCalculator");
GraphicsDevice.VertexDeclaration = new VertexDeclaration(
GraphicsDevice,
VertexPositionTexture.VertexElements
);
vertexDeclaration = GraphicsDevice.VertexDeclaration;
}
protected override void UnloadContent()
{
inputTexture.Dispose();
result.Dispose();
vertexDeclaration.Dispose();
}
protected override void Update(GameTime gameTime)
{

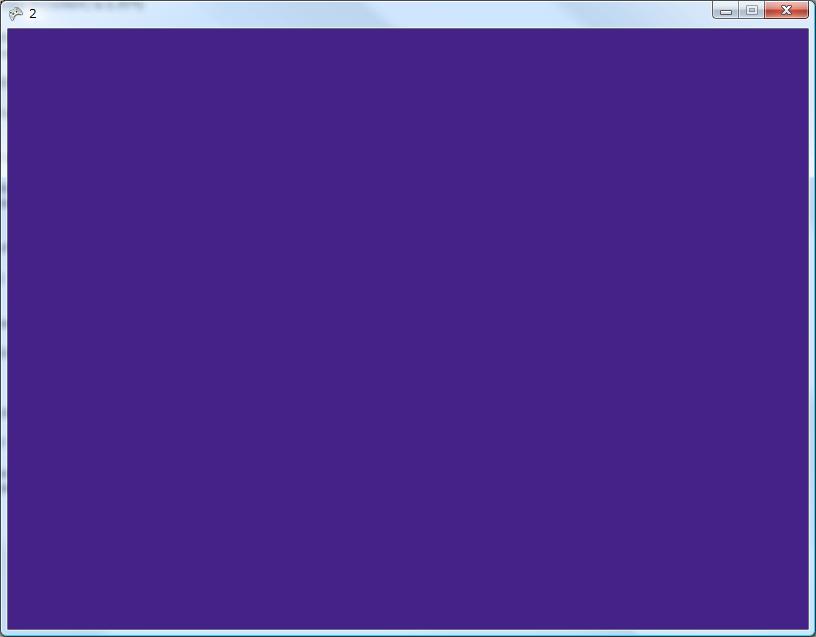

Window.Title = resultBuffer[1].ToString();
}
protected override void Draw(GameTime gameTime)
{
GraphicsDevice.SetRenderTarget(0, result);
additionCalculator.Parameters["InputTexture"].SetValue(inputTexture);
additionCalculator.Parameters["InputWidth"].SetValue(2);
additionCalculator.Begin();
additionCalculator.CurrentTechnique.Passes[0].Begin();
GraphicsDevice.DrawUserPrimitives<VertexPositionTexture>(
PrimitiveType.TriangleList,
vertices,
0, 2
);
additionCalculator.CurrentTechnique.Passes[0].End();
additionCalculator.End();
//GetDataを呼ぶには、レンダーターゲットはいったん
//デバイスから外されなければいけません。
GraphicsDevice.SetRenderTarget(0, null);
result.GetTexture().GetData<float>(resultBuffer);
}
static void Main()
{
using (MyGame game = new MyGame())
{
game.Run();
}
}
}
float InputWidth;
texture InputTexture;
sampler InputSampler = sampler_state
{
Texture = (InputTexture);
};
struct VertexPositionTexture
{
float4 Position : POSITION;
float2 TextureCoordinate : TEXCOORD;
};
VertexPositionTexture VertexShaderFunction(VertexPositionTexture input)
{
return input;
}
float4 PixelShaderFunction(VertexPositionTexture input) : COLOR0
{
return tex2D(InputSampler, input.TextureCoordinate + float2(-1/InputWidth, 0))
+ tex2D(InputSampler, input.TextureCoordinate);
}
technique Technique1
{
pass Pass1
{
VertexShader = compile vs_1_1 VertexShaderFunction();
PixelShader = compile ps_2_0 PixelShaderFunction();
}
}
[2回]
ContentManager Content { get; }
protected virtual void LoadContent();
protected virtual void UnloadContent();
public GraphicsDevice GraphicsDevice { get; }
[0回]
[0回]

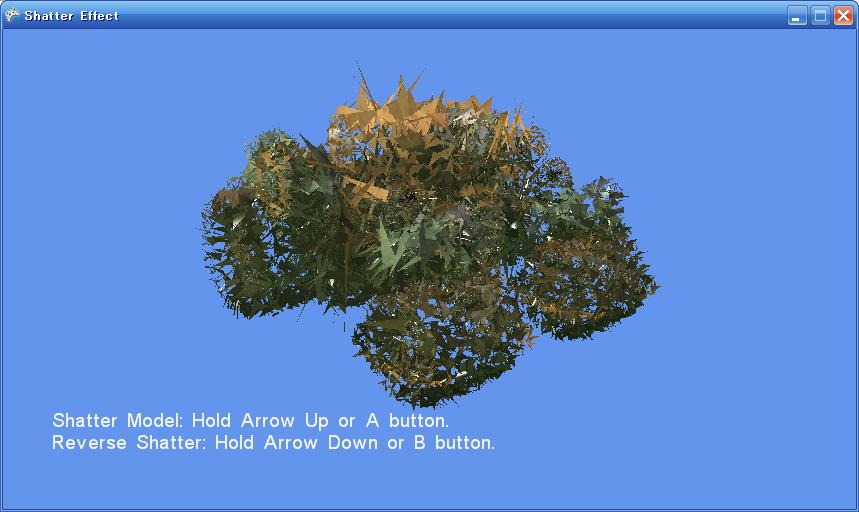

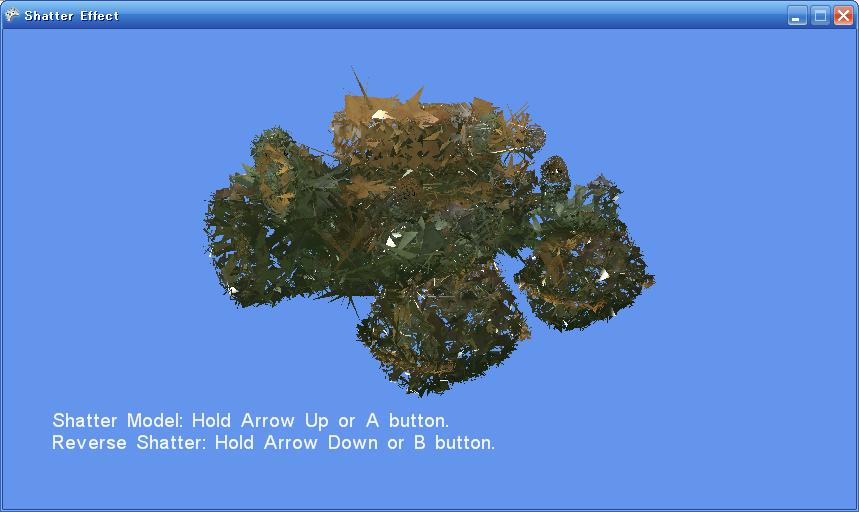

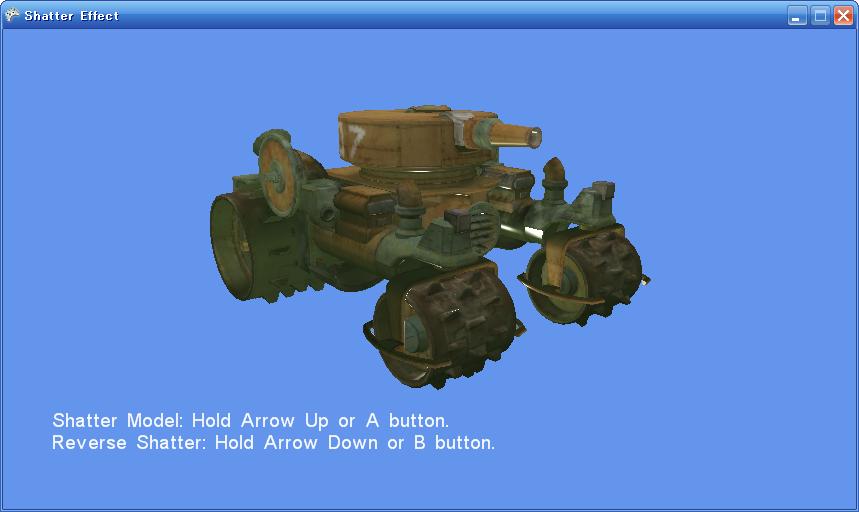

float4x4 World, View, Projection;
float Shatter;
texture Texture;
sampler TextureSampler = sampler_state
{
Texture = (Texture);
};
struct VertexPositionTexture
{
float4 Position : POSITION;
float2 TextureCoordinate : TEXCOORD;
};
VertexPositionTexture ShatterVertexShader(
float4 position:POSITION,
float4 normal:NORMAL,
float2 textureCoordinate :TEXCOORD
)
{
VertexPositionTexture output;
position.xyz += normal.xyz * Shatter;
float4x4 transform = mul(World, mul(View, Projection));
output.Position = mul(position, transform);
output.TextureCoordinate = textureCoordinate;
return output;
}
float4 ShatterPixelShader(float2 textureCoordinate : TEXCOORD) : COLOR
{
return tex2D(TextureSampler, textureCoordinate);
}
technique ShatterEffect
{
pass
{
VertexShader = compile vs_2_0 ShatterVertexShader();
PixelShader = compile ps_2_0 ShatterPixelShader();
}
}

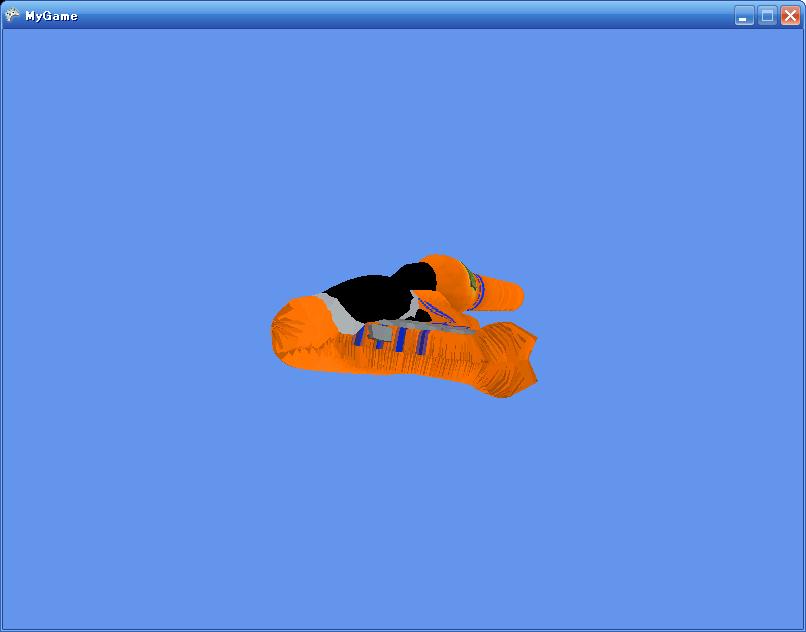

using Microsoft.Xna.Framework;
using Microsoft.Xna.Framework.Graphics;
using Microsoft.Xna.Framework.Content;
class MyGame : Game
{
GraphicsDeviceManager graphics;
ContentManager content;
//Graphics Device Objects
Effect effect;
Model model;
public MyGame()
{
graphics = new GraphicsDeviceManager(this);
content = new ContentManager(Services);
}
protected override void LoadGraphicsContent(bool loadAllContent)
{
if (loadAllContent)
{
effect = content.Load<Effect>("ShatterEffect");
model = loadModel("Ship", effect);
}
}
Model loadModel(string modelName, Effect effect)
{
Model result = content.Load<Model>(modelName);
foreach (ModelMesh mesh in result.Meshes)
{
foreach (ModelMeshPart part in mesh.MeshParts)
{
effect.Parameters["Texture"].SetValue(
((BasicEffect)part.Effect).Texture
);
part.Effect = effect.Clone(graphics.GraphicsDevice);
}
}
return result;
}
protected override void UnloadGraphicsContent(bool unloadAllContent)
{
if (unloadAllContent)
{ content.Unload(); }
}
protected override void Draw(GameTime gameTime)
{
graphics.GraphicsDevice.Clear(Color.CornflowerBlue);
foreach (ModelMesh mesh in model.Meshes)
{
foreach (Effect effect in mesh.Effects)
{
setEffectParameters(
effect,
gameTime.TotalGameTime.TotalSeconds
);
}
mesh.Draw();
}
}
private void setEffectParameters(Effect effect, double totalSeconds)
{
Matrix world = Matrix.CreateRotationY(
(float)totalSeconds * 2
);
Matrix view = Matrix.CreateLookAt(
new Vector3(0, 0, 3000), new Vector3(), Vector3.UnitY
);
Matrix projection = Matrix.CreatePerspectiveFieldOfView(
MathHelper.ToRadians(90),
(float)graphics.GraphicsDevice.Viewport.Width / graphics.GraphicsDevice.Viewport.Height,
1, 10000
);
effect.Parameters["Shatter"].SetValue(
(float)(1 + System.Math.Sin(totalSeconds)) * 100
);
effect.Parameters["World"].SetValue(world);
effect.Parameters["View"].SetValue(view);
effect.Parameters["Projection"].SetValue(projection);
}
}
[0回]
